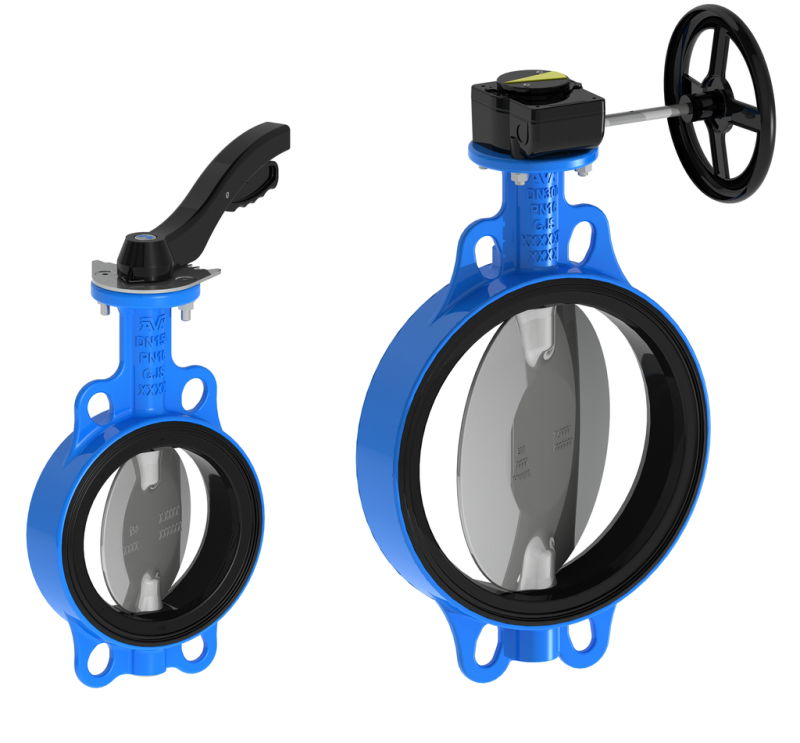

FCT Eccentric Butterfly Valve – Reduced Friction, Improved Longevity

FCT eccentric butterfly valves utilize a single-offset design, where the shaft is placed behind the centerline of the disc, reducing seat contact during opening and closing. This results in lower operating torque, reduced wear, and longer seat life, making the valve suitable for both on/off and modulating control.

These valves are offered with resilient or metal seats, depending on the pressure, temperature, and media requirements, and are widely used in water treatment, oil & gas, chemical processing, and energy sectors.

Technical Specifications

  • Design Standards: API 609, EN 593, ISO 5752

  • Size Range: 2” to 48” (DN50 to DN1200)

  • Pressure Ratings: PN 10, 16, 25 / ANSI 150, 300

  • Body Materials: Cast Iron, Ductile Iron, WCB, Stainless Steel

  • Disc Materials: Stainless Steel, Duplex, Aluminum Bronze

  • Seat Options: Resilient (EPDM, NBR) or Metal-to-Metal

  • End Connections: Wafer, Lug, Double Flanged

  • Temperature Range: -29°C to +300°C

  • Operation: Lever, Gear, Pneumatic, Electric

  • Leakage Class: API 598, EN 12266 / Class IV or VI

Key Features

  • Offset disc design reduces friction and seat wear

  • Available in soft or metal seated versions

  • Low torque, suitable for automated actuation

  • High cycle life in tough process environments

  • Compact body design for space-saving installations

  • Reliable sealing for both isolation and control

Applications

  • Water and wastewater treatment plants

  • District heating and cooling systems

  • Oil & gas pipelines and terminals

  • Refining and petrochemical plants

  • General industrial and utility process lines

  • Chemical and abrasive service isolation
