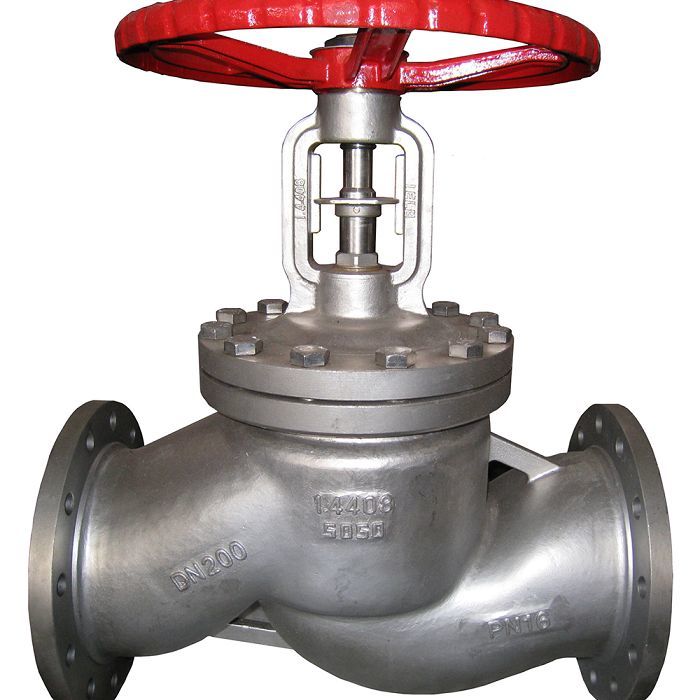

FCT DIN Globe Valve – Standardized Control for European Industrial Systems

FCT DIN globe valves are manufactured to DIN 3356 and EN 13709 standards, ensuring dimensional and functional compatibility in European piping systems. These valves are designed for accurate flow regulation, tight shut-off, and long service life in water, steam, gas, and chemical processes.

The rising stem and linear disc movement provide precise throttling control, while the robust body and bonnet design ensure durability under varying pressures and temperatures.

Technical Specifications

  • Design Standards: DIN 3356, EN 13709

  • Size Range: DN15 to DN500

  • Pressure Ratings: PN 10, PN 16, PN 25, PN 40

  • Body Materials: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel

  • Trim Materials: 13Cr, Stainless Steel, Bronze, Stellite®

  • Seat Type: Metal Seated or Soft Seated (PTFE, EPDM)

  • End Connections: Flanged EN 1092-1, Butt Weld, Socket Weld

  • Temperature Range: -10°C to +400°C

  • Leakage Class: EN 12266-1, Class A/B

  • Operation: Manual, Pneumatic, or Electric

  • Bonnet Type: Bolted or Pressure Seal (optional)

Key Features

  • Conforms to DIN and EN standards for system compatibility

  • Excellent throttling characteristics for precise flow control

  • Full range of materials and pressure classes

  • Interchangeable trim and seat rings for easy maintenance

  • Optional bellows seal or pressure seal bonnet available

  • Low-emission packing systems available

Applications

  • European power and utility systems

  • District heating and cooling networks

  • Industrial steam and condensate control

  • Water treatment and chemical dosing

  • HVAC systems in buildings and factories

  • General service in process and mechanical plants
