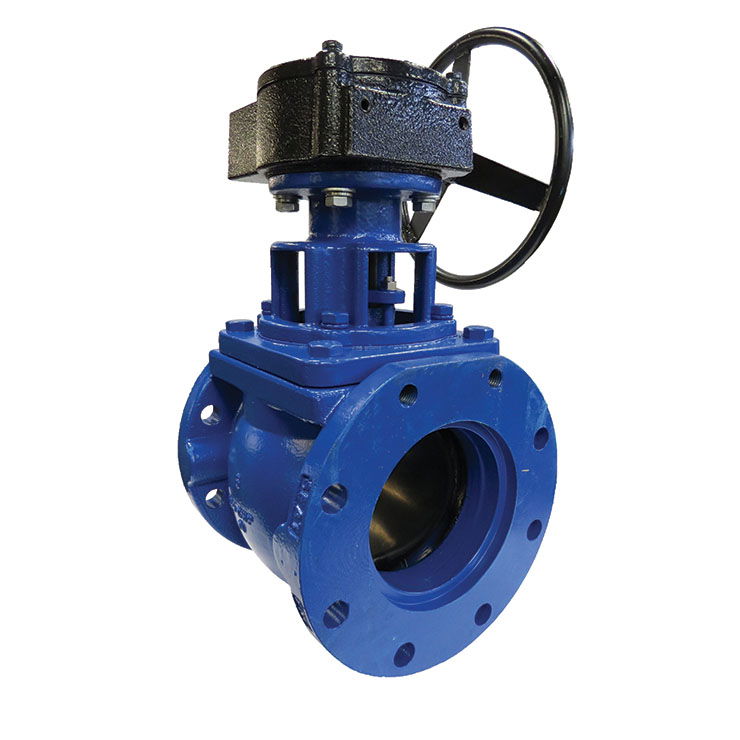

FCT Eccentric Plug Valve – Tough Flow Control for Abrasive and Dirty Media

FCT eccentric plug valves feature a plug that rotates away from the seat during opening/closing, eliminating scraping and minimizing contact—resulting in less wear, lower torque, and longer seal life.

This makes them ideal for municipal wastewater, industrial sludge, chemical slurries, and pulp & paper processing, where conventional valves may clog or erode quickly. The full port design also allows for minimal pressure loss and easy maintenance.

Technical Specifications

  • Design Standards: AWWA C517, MSS SP-108, API 599

  • Size Range: 2” to 36” (DN50 to DN900)

  • Pressure Ratings: ANSI 150 / PN 10 to 25

  • Body Materials: Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel

  • Plug Materials: Stainless Steel, Ni-Resist, Rubber Coated

  • Seat Type: Resilient or Metal-to-Metal

  • End Connections: Flanged, Mechanical Joint, Grooved

  • Temperature Range: -10°C to +150°C

  • Operation: Manual, Gear, Electric, Pneumatic

  • Leakage Class: Class IV or Bubble-Tight (depending on seat)

  • Optional: Fusion bonded epoxy coating, actuator-ready versions

Key Features

  • Eccentric movement reduces friction and wear

  • Suitable for throttling and on/off service

  • Excellent for dirty, viscous, or abrasive fluids

  • Resistant to clogging and corrosion

  • Compact design with full port flow

  • Low torque for actuator compatibility

Applications

  • Wastewater and sewage treatment plants

  • Slurry and abrasive fluid transport

  • Pulp and paper industry

  • Chemical and petrochemical waste streams

  • Cooling water systems with suspended solids

  • Food and beverage byproduct lines
