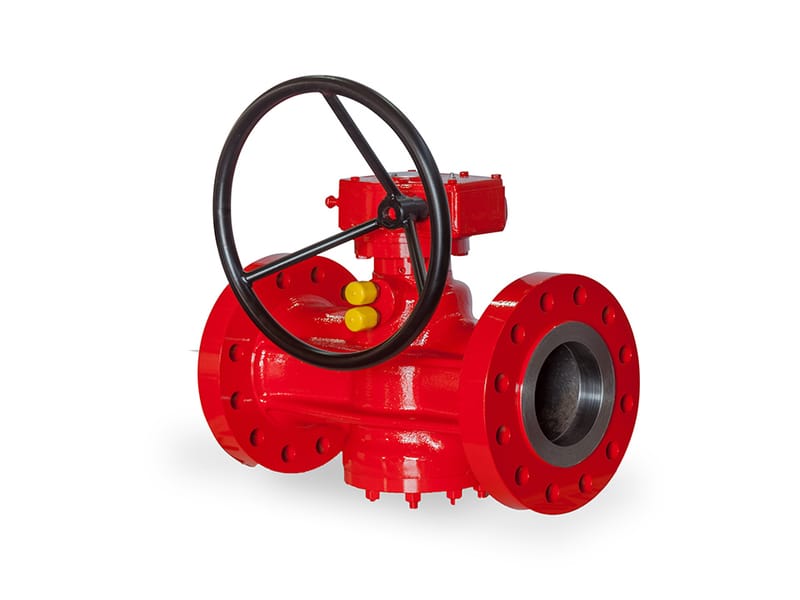

FCT Lubricated Plug Valve – Reliable Sealing for Demanding Flow Control

FCT lubricated plug valves operate using a cylindrical or tapered plug that rotates inside the valve body. A special sealing compound (grease or polymer) is injected under pressure into grooves around the plug, filling the gap and creating a leak-tight, corrosion-resistant seal.

These valves are well-suited for abrasive, corrosive, or viscous fluids, and particularly in applications where valves remain closed for extended periods, as the lubricant protects both internal surfaces and sealing performance.

Technical Specifications

  • Design Standards: API 6D, ASME B16.34, ISO 14313

  • Size Range: ½” to 24” (DN15 to DN600)

  • Pressure Ratings: ANSI 150 to 900 / PN 10 to 160

  • Body Materials: WCB, LCB, CF8M, Alloy Steel

  • Plug Type: Tapered or Cylindrical

  • Sealing Method: Pressure-Injected Sealant

  • Seat Type: Metal with lubricant-filled cavity

  • End Connections: Flanged, Butt Weld, RTJ

  • Temperature Range: -29°C to +250°C

  • Operation: Lever, Gearbox, Electric, Hydraulic

  • Leakage Class: API 598 / Zero-leak (when sealed)

Key Features

  • Sealant injection system ensures leak-free shut-off

  • Durable construction for high-pressure and corrosive service

  • Simple quarter-turn operation

  • Resealable and repairable in-line

  • Minimized galling and seat damage

  • Available with DBB (Double Block & Bleed) feature

Applications

  • Crude oil and natural gas pipelines

  • Gas processing and compressor stations

  • Refineries and petrochemical plants

  • Blowdown and isolation valves

  • Terminal and loading systems

  • Chemical injection and transport lines
