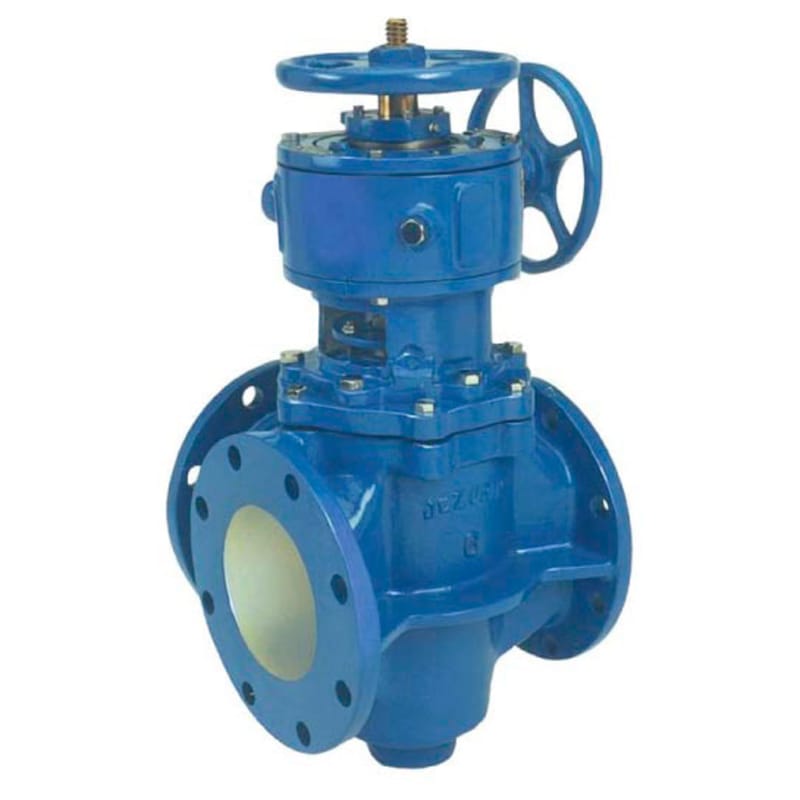

FCT Multi-Port Plug Valve – Efficient Flow Switching in One Body

FCT multi-port plug valves feature a rotating plug with multiple flow paths, allowing a single valve to perform the role of two or more conventional valves. Available in 3-way (L-port or T-port) and 4-way designs, they enable diversion, mixing, or bypass functions in process pipelines.

This valve type reduces system complexity, space, and installation cost while maintaining excellent sealing performance and low torque operation.

Technical Specifications

  • Design Standards: API 599, ASME B16.34

  • Size Range: 1” to 12” (DN25 to DN300)

  • Pressure Ratings: ANSI 150 to 600 / PN 10 to 100

  • Body Materials: Carbon Steel, Stainless Steel, Alloy 20, Bronze

  • Plug Materials: Stainless Steel, Monel, or PTFE-coated

  • Seat Options: PTFE Sleeved, Metal-to-Metal

  • Port Configurations: L-Port, T-Port, X-Port (custom)

  • End Connections: Flanged, Socket Weld, Threaded

  • Temperature Range: -29°C to +200°C

  • Operation: Manual, Gear, Electric, Pneumatic

  • Leakage Class: API 598 / Class VI (soft seat)

  • Optional: Fire-safe design, anti-static feature

Key Features

  • Controls multiple flow directions in one valve body

  • Available in 3-way and 4-way configurations

  • Minimizes pipe fittings and space requirements

  • Customizable porting for unique process needs

  • Reliable shut-off and low maintenance

  • Compatible with automated control systems

Applications

  • Process fluid distribution and switching

  • Mixing and diversion lines in chemical systems

  • Tank farm and manifold operations

  • Water treatment distribution

  • Industrial cooling and HVAC flow control

  • Pharmaceutical and food-grade piping systems
