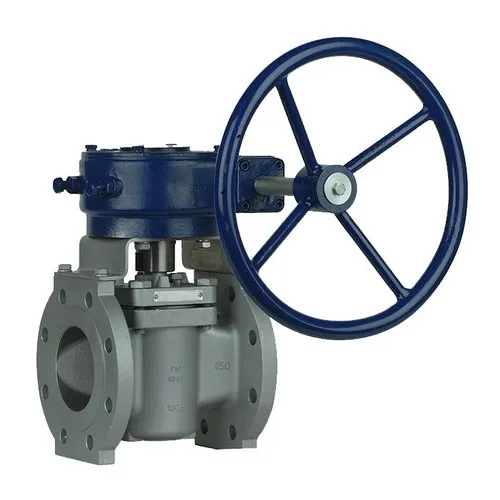

FCT Non-Lubricated Plug Valve – Grease-Free, Low-Friction Isolation

FCT non-lubricated plug valves use a lined or sleeved plug design, typically with PTFE, TFM, or elastomeric materials, to eliminate the need for grease injection. The plug rotates inside the sleeve, allowing for low-torque operation and leak-free shut-off—even in corrosive, high-purity, or hazardous service.

This design is ideal where cleanliness, low maintenance, and chemical compatibility are critical, such as in pharmaceutical, food-grade, and waste treatment systems.

Technical Specifications

  • Design Standards: API 599, ASME B16.34

  • Size Range: ½” to 12” (DN15 to DN300)

  • Pressure Ratings: ANSI 150 to 300 / PN 10 to 40

  • Body Materials: Ductile Iron, Stainless Steel, Alloy 20, Bronze

  • Plug Materials: Stainless Steel, Monel, PTFE-coated

  • Seat/Liner Materials: PTFE, RPTFE, TFM, Viton, EPDM

  • End Connections: Flanged, Threaded, Socket Weld

  • Temperature Range: -29°C to +200°C

  • Operation: Lever, Gear, Pneumatic, Electric

  • Leakage Class: Bubble-tight (Class VI)

  • Optional: Fire-safe and anti-static versions available

Key Features

  • No grease or lubricant required

  • Low friction operation with long seal life

  • Excellent resistance to acids, alkalis, and solvents

  • Suitable for high-purity and sanitary systems

  • Compact design and low maintenance

  • Soft-seated, bubble-tight shut-off

Applications

  • Chemical processing and dosing systems

  • Water and wastewater treatment plants

  • Pharmaceutical and food industry pipelines

  • HVAC and utility lines

  • Corrosive or hazardous fluid isolation

  • Clean service environments with minimal contamination risk
