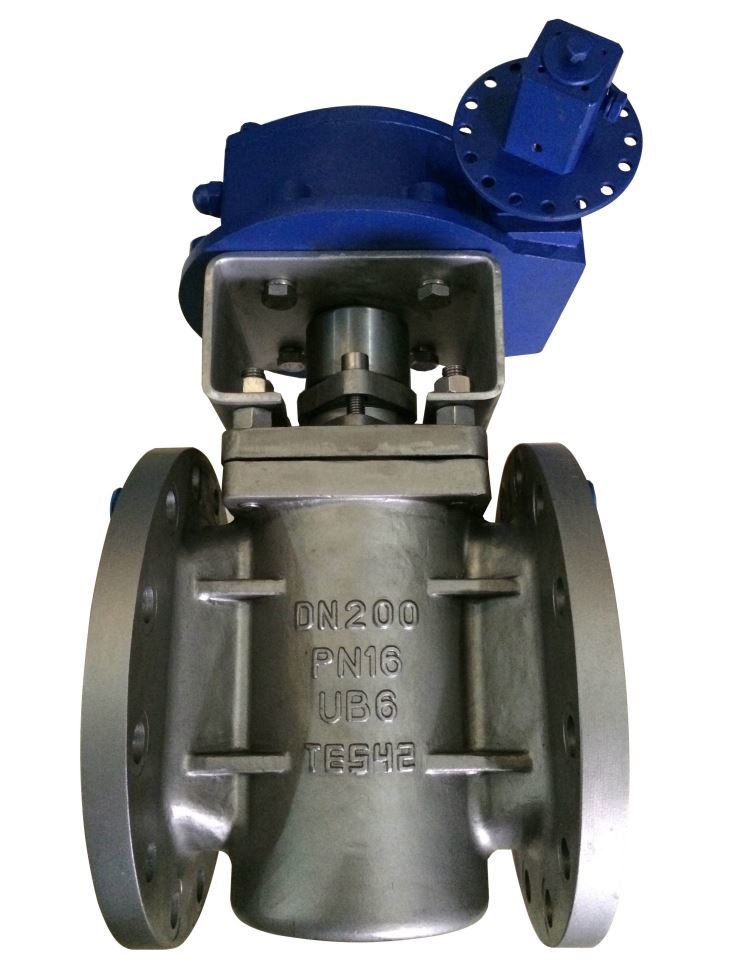

FCT Sleeve Type Soft Sealing Plug Valve


FCT Sleeve Type Soft Sealing Plug Valve

GENERAL FEATURES


Sleeve Type Soft Sealing Plug Valve

Sleeve Type Soft Sealing Plug Valve acc. to ANSI is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum , chemical industry, pharmacy, chemical fertilizer and so on .

Feature

-Soft sealing

-Closing is perfect since the plug part is enclosed in a PTFE sleeve.

-It has a metal rim of 360 degrees only for protection and securing of the jacket.

-No cavity in the valve for accumulation of fluid.

-Metal rim has a self-cleaning function when the plug is turned.

Production Range:

Size: NPS 2”~ 16” , DN50 ~ DN400

Pressure: Class 150-900 LB ,  PN 10 ~ 100

END Connection: Flange , BW , SW

Design Standard: API 6D , API 599

Face to Face Dimension : ASME B16.10

Connection Dimensions: ASME B 16.5 , ASME B16.25 , ASME B 16.11

Body Material: Carbon Steel , Stainless Steel , Duplex Stainless Steel , Special Alloy

Operated Way: Hand wheel , Bevel Gear, Pneumatic, Electric,etc
