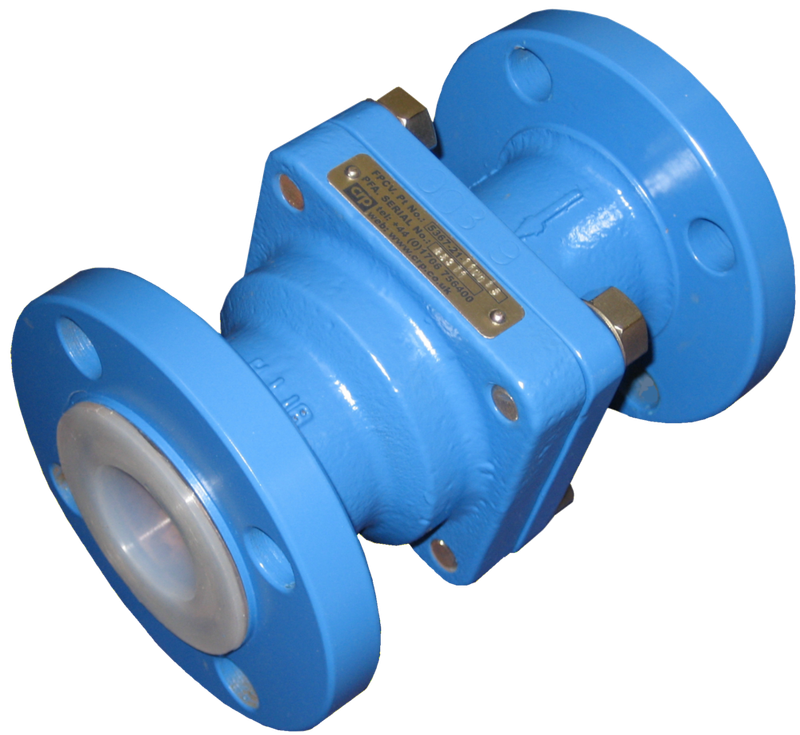

FCT PTFE Lined Check Valve – Clean Backflow Prevention in Corrosive Systems

FCT PTFE lined check valves feature a fully encapsulated interior lining made of PTFE or PFA, covering all wetted surfaces. This protects the valve body and components from corrosion while maintaining purity in systems carrying acids, alkalis, demineralized water, and hazardous fluids.

Their simple, automatic non-return action ensures leak-free shut-off upon flow reversal, making them ideal for chemical and high-purity industries.

Technical Specifications

  • Design Standards: API 594, EN 12334

  • Size Range: 1” to 12” (DN25 to DN300)

  • Pressure Ratings: PN 10 / ANSI 150

  • Body Materials: Ductile Iron, WCB, Stainless Steel

  • Disc Type: PTFE/PFA Coated, Solid PTFE

  • Lining Material: PTFE (optional: PFA, FEP)

  • End Connections: Wafer, Flanged

  • Temperature Range: -20°C to +180°C

  • Leakage Class: EN 12266 / Class A

  • Mounting: Horizontal or vertical (flow upward)

Key Features

  • Full PTFE lining for aggressive chemical protection

  • Non-return functionality without external power

  • No metal exposure to fluid path

  • Bubble-tight sealing with minimal cracking pressure

  • Low maintenance and easy installation

  • Corrosion and contamination-free operation

Applications

  • Acid, alkali, and solvent flow systems

  • Demineralized and ultrapure water pipelines

  • Chemical and pharmaceutical processing

  • Food and beverage industry

  • Wastewater and neutralization systems

  • Chlorine and bleaching agent lines
